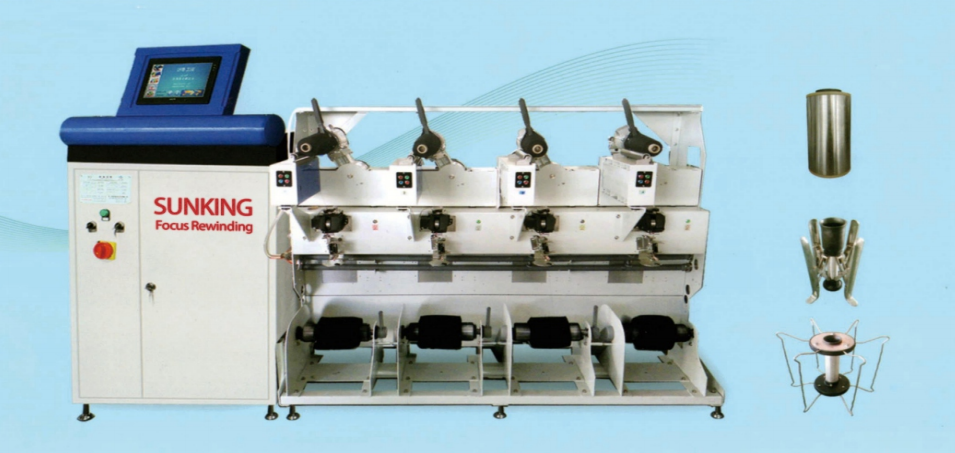

| SK-80PWH | CONFIGURATIONS |
| Types of winding | Precision winding/Electronic winding |
| Mechanical speed | Up to 1200m/m (process speed depending on process parameters) |
| Package shape | Freely programmable |
| Traverse length | 30-250mm infinitely variable |
| Package diameter | 180mm-200mm |
| Package weight | Up to 2kg (Weight depends on material type) |
| Supplypackage diameter | Upto 320mm |
| Yarns | Textured or flat filaments,elastic yarns,silk,staple yarns,fine technical yarns |
| Take-up tubes | 0°- 5° 57' |
| Layout | Single sided machine |
| N° of spindles per section | 4 |
| Min./max.N ° of spindles | 4/40 |
| Gauge | 450mm |
| Drive | Individual |
| Installed power | 380w Per spindle |
| Power consumption | 100w Per spindle |
| Density of winding | Freely program mable |
| Size （LxHxW） | 1823x700x1550mm |
