Type | PW2-3(4)FW2-3(4) |
Gauge | 505mm |
Spindles per section | 8 |
No.of yarn assembly | 3(4) |
Winding speed | 1200m/min |
Drive | lndividual servo motor |
Motor | 300w |
Yarn tension | magnetic tension |
Traverse | 6",8" |
Length of machine | 350+(SP÷8)x2100mm |
Separator | Have |
Optional device | Overhead travelling blower |
Machine model | Pw2-3 (4)/FW2-3(4) |
Count range | Ne 6-200 |
Diameter of supply package | 250mm |
Diameter of assembled package | 200mm |
Type of yarn | Staple fiber , Synthetic |
Winding speed | 1200m/min(Depending on process parameters) |

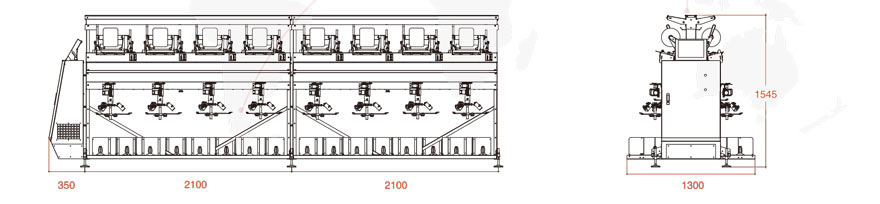

Quantity | 8/Sp | 16/Sp | 24/Sp | 32/Sp | 40/Sp | 48/Sp | 56/Sp | 64/Sp | 72/Sp | 80/Sp | 88/Sp | 96/Sp |
Length(mm) | 2450 | 4550 | 6650 | 8750 | 10850 | 12950 | 15050 | 17150 | 19250 | 21350 | 23450 | 25550 |
Width(mm) | 1300 | |||||||||||
Heigh(mm) | 1545 | |||||||||||
Net weight(kg) | 520 | 920 | 1320 | 1720 | 2120 | 2520 | 2920 | 3320 | 3720 | 4120 | 4520 | 4920 |
