SK-80DWH

Product Description：Wait for update...

Hotline:0086-21-3351 8046

Options

SK-80DWH	CONFIGURATIONS
Layout of machines	Double - side machine
Winding tube type	3°30',4°20',5°57',9°15'
Anti-overlapping device	Electronic anti overlap parameter setting
Electric waxing	Square hole wax can be put into a single set of wax
Yam guide stroke	144mm
Drive	Variable frequency AC single spindle motor
Grooved drum specifications	82mm 2.5 turns
Winding speed	300-1100m/min
Supply voltage	Three Phase 400V ±10% 50/60Hz
Power	60w/spindle
Cone size	Max. 260mm
Tight cylinder density	0.3- 0.45g/cm3
Winding	CS:0°;CR:3°30',4°20',5°57' 9°15'
Length measurement system	Theoretical length or Holzer sensor length
Spindle per unit	12
Composition Ingot number	156

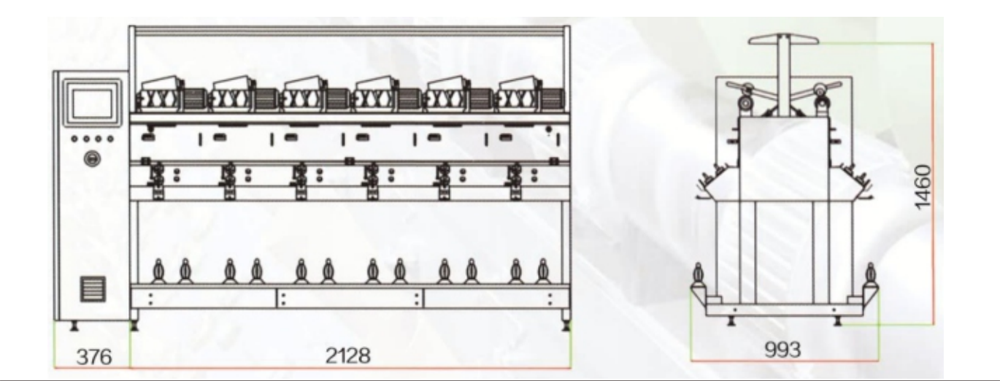

Head weight size	50kg 376x650x1250mm
Per-unit weight size	380kg 2128x993x2240mm
Other
Auto - stop control	Electronic auto-stop device
Waxing device	Optional
Digital display	Optional
