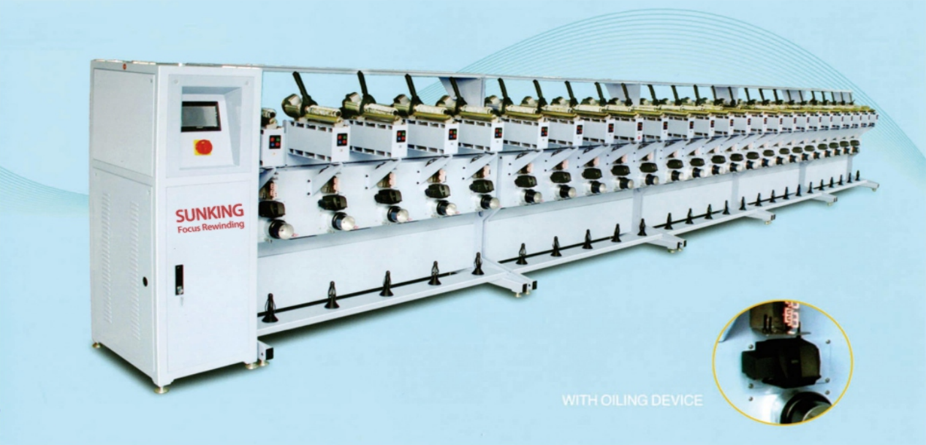

SK - 80PWS | CONFIGURATIONS |
Types of winding | Precision winding/Electronic winding |
Mechanical speed | Up to 1200m/m (process speed depending on process parameters) |
Package shape | Freely programmable |
Traverse length | 30-250mm infinitely variable |
Package diameter | 180mm-200mm |
Package weight | Up to 4kg (Weight depends on material type) |
Supply package diameter | Up to 320mm |
Yarns | Textured or flat filaments,elastic yarns,silk,staple yarns,fine technical yarns |
Take-up tubes | 0°- 5° 57’ |
Layout | Single sided machine |
N° of spindles per section | 5 |
Min./max.N ° of spindles | 5/60 |
Gauge | 360mm |
Drive | Individual |
Installed power | ~280w Per spindle |
Power consumption | 100w Per spindle |
Density of winding | Freely program mable |
Size (L x H x W ) | 1823x700x1550mm |
