Suitable yarn | Cotton and wool short fiber yarns |
Yarn count range | Ne3-80 (Nm5-135) |
Feeding yarn diameter | Maximum: 230 mm |
Full package weight | Maximum:4kg |
Spindle arrangement | double sided |
Transmission device | Single spindle |
No. of spindles / section | 10spindles(or 8 spindles) |
No. of spindles and No. of sections | Max 120 spindles |
Spindle gauge | 340mm 425mm |

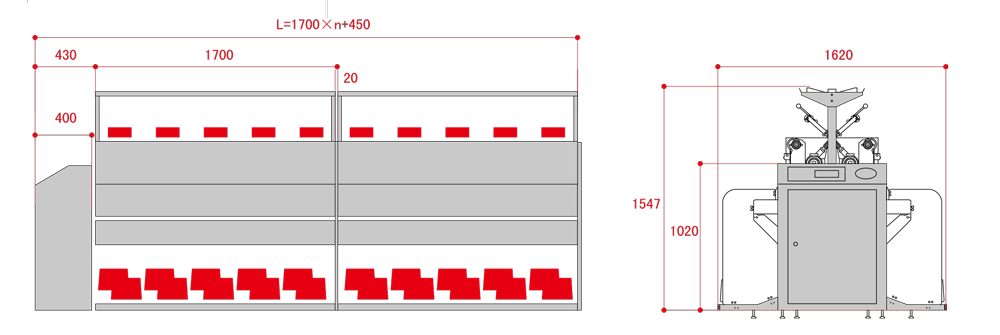

Section length | 1700 mm |
Package mode | Grooved drum |
winding mode | Not adjustable |
Bobbin type | Minimum diameter of empty bobbin:Inner diameter 38mm Outer diameter 43mm |
Lengu1 of empty bobbfn | 170mm or 230tnm |
Take-up diameter(mm) | Maximum 200mm |
Traverse length | 152 mm or 215mm |
Mechanical speed | Maximum600m/min(thetechnical speeddepends theyarnandthetechnicalparameters) |
Supply frequency | 50/60Hz |
Installed power per spindle | 0.09kw |
Actual power consumption per spindle | 0.05-0.07kw(differentaccordingtotheprocess) |
Travelling cleaner Power (optional) | 1.1kw |
Electronicyarnclearer;Tensionsensor;Spandexdevice;Singleyarntensionauxiliarydevice |
