| SK-80DWS | CONFIGURATIONS |
| Layout of machines | Double-side machine |
| Winding tube type | 3°30',4°20' |
| Anti-overlapping device | Electronic anti overlap parameter setting |
| Yam guide stroke | 147mm,144mm,151mm |
| Drive | Variable frequency AC single spindle motor |
| Grooved drum specifications | 82mm 2.5turns |
| Traverse soft edge | Each section has an independent traverse device |
| winding speed | 300-1100m/min |
| Supply voltage | Three Phase 400V ±10% 50/60Hz |
| Power | 60w/spindle |
| Cone size | Max, 260mm |
| Cone density | 0.3-0.45g/cm3 |
| Winding | CS:0°;CR:3°30',4°20',5°57' |
| Length measurement system | Theoretical length or Holzer sensor length |
| Spindle per unit | 12 |
| Composition Ingot number | 156 |
| Head weight size | 50kg 376x650x1250mm |

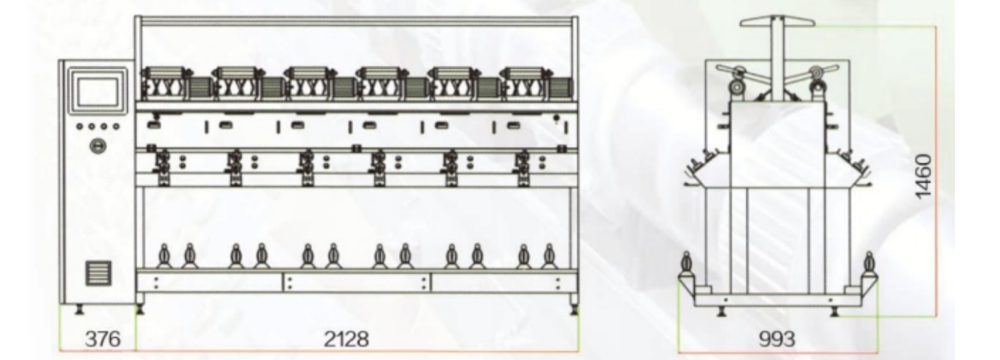

| Per-unit weight size | 380kg 2128x993x2240mm |
| Other | |
| Auto- stop control | Electronic auto-stop device |
| Waxing device | Optional |
| Digital display | Optional |
