Save Engery Chenille Machine

Product Description：The machine adopt 200kw rare earth permanent magnet synchronous motor, can save 40% electric compare with traditional type machine, and improve about 30% capacity, so can reduce the product cost much. ...

Hotline:0086-21-3351 8046

Consult Now

Product Description

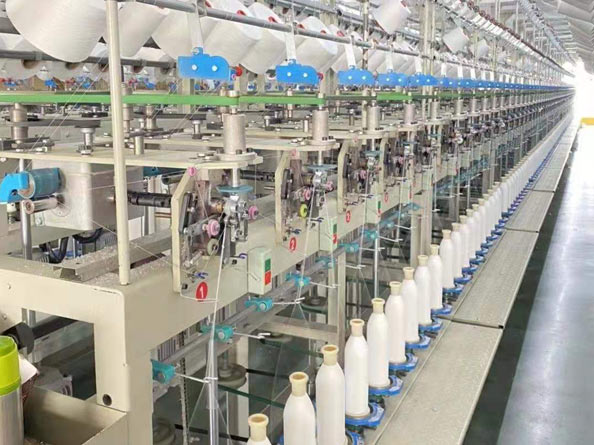

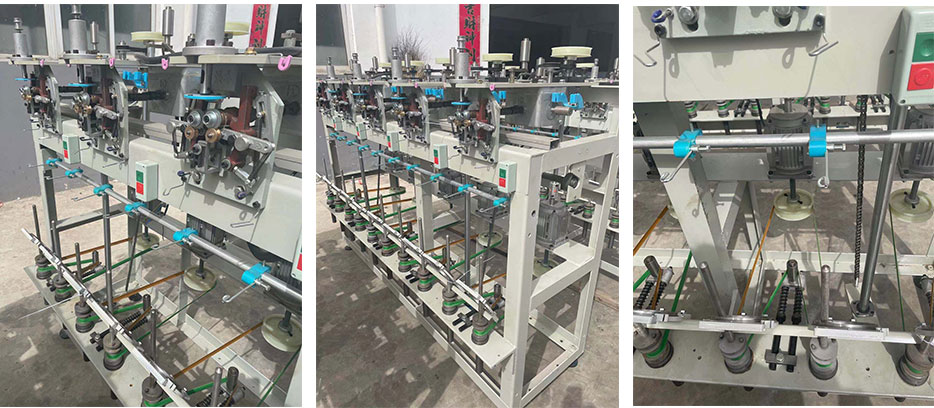

SK- HD06 save energy Chenille machine details

1, The machine adopt 200kw rare earth permanent magnet synchronous motor, can save 40% electric compare with traditional type machine, and improve about 30% capacity, so can reduce the product cost much.

2, New design rotation base speech can be 20000rpm, use smooth and low noise, long time use life

3, New design spindles , speech about 6800rpm, old type spindle only can be max 4500 rpm.

4, The lifting motor adopt linear bearing type, which more stable and easy maintain, winding more precision and easy re winding.

5, Through engineer improve the machine, machine width from 1600mm reduce to 1320mm, save much space for workshop.

Spindles	100 spindles/set（10 spindles/suction）
Spindle guage	200mm
Roller dia	29.5mm
Steel ring dia	100mm
Lifting disctance	280mm (可调)
Lifting speed	Adjust by inverter or plc
Spindle speed	3000～6400rpm
Rotary base	500～20000rpm
Suite yarn ccount	4.5～20Nm
Produce yarn length spped	4～ 14 M/min
Twist way	Normally is S twisting, if need Z twisting, plz inform seperatly
Power	10kw
Machine size	2040mm1320mm2450mm (LWH)
