QUALITY

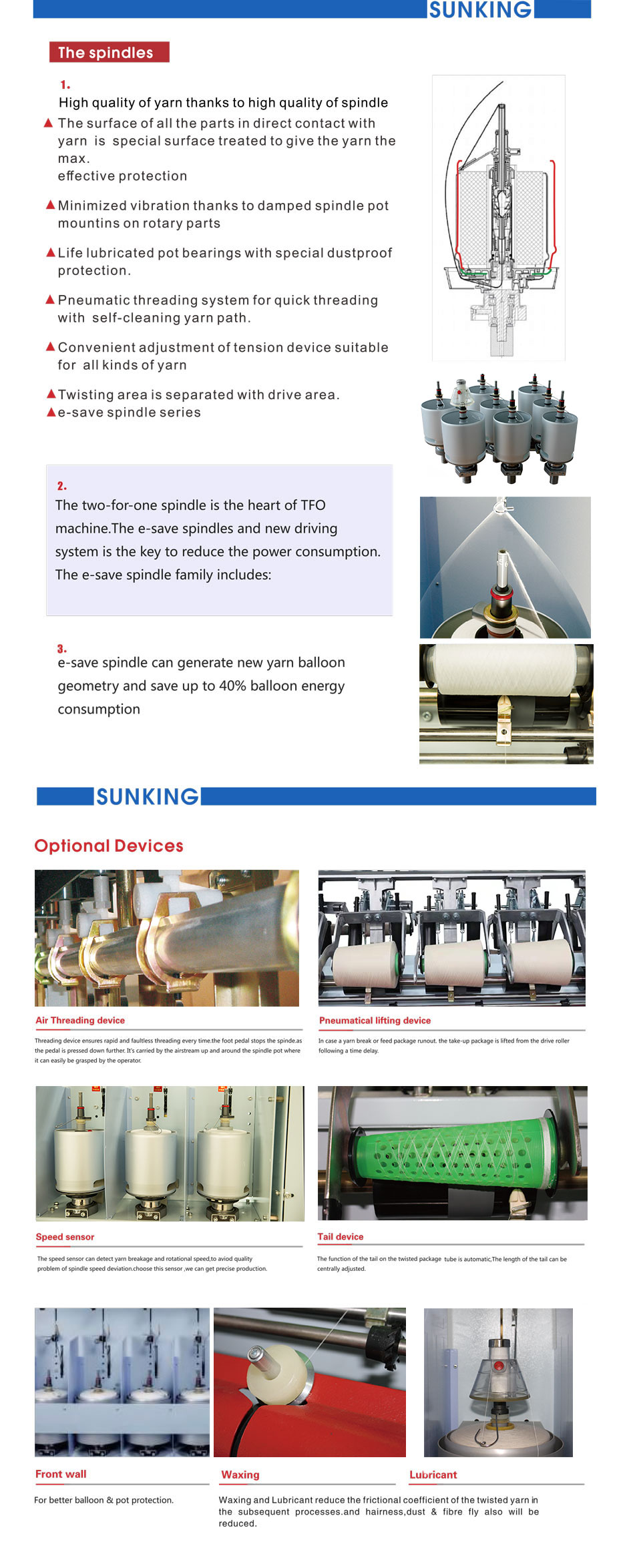

SPECIAL COMPONENTS OF TWISTING SYSTEM
◎Super energy saving and noise reduction design
◎Suitable for high-speed rotation ( with a maximum of 14000 RPM)
◎High stability, long working life.

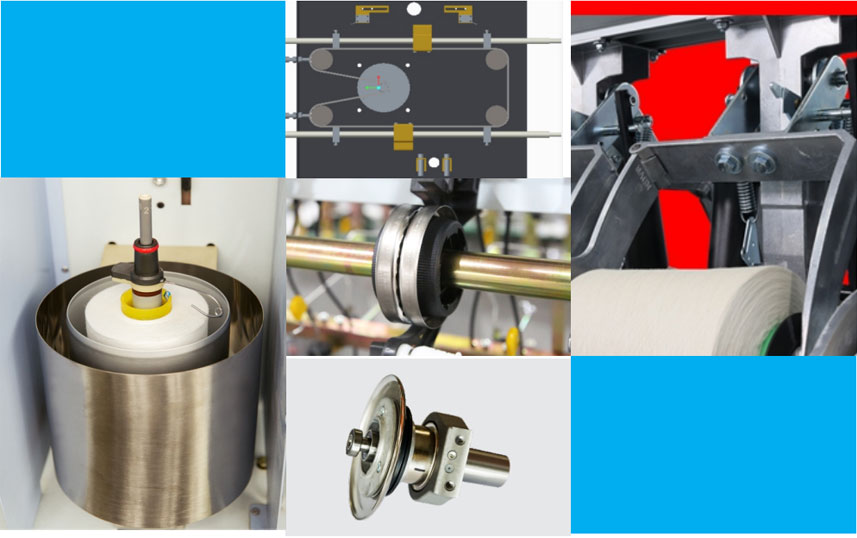

STRUCTURE OF WIDING SYSTEM
◎Big bearing capacity and stable rotation
◎Special guide routine, and good shape
◎High-precision frequency converter control and reliable
Traversed offing individual drive with servo motor
PROCESSING ACCUMULATION
◎Yarn twisting channel is processed especially with little fraction,which is suitable for high quality yarn twisting.
◎Multiple processing configuration
◎Have application customers in various fields to achieve process accumulation.
SYSTEM
TECHNICAL SYSTEM
◎Professional spinning machine research center and labs
◎Top design and management software in the industry
◎Increasing patented technology

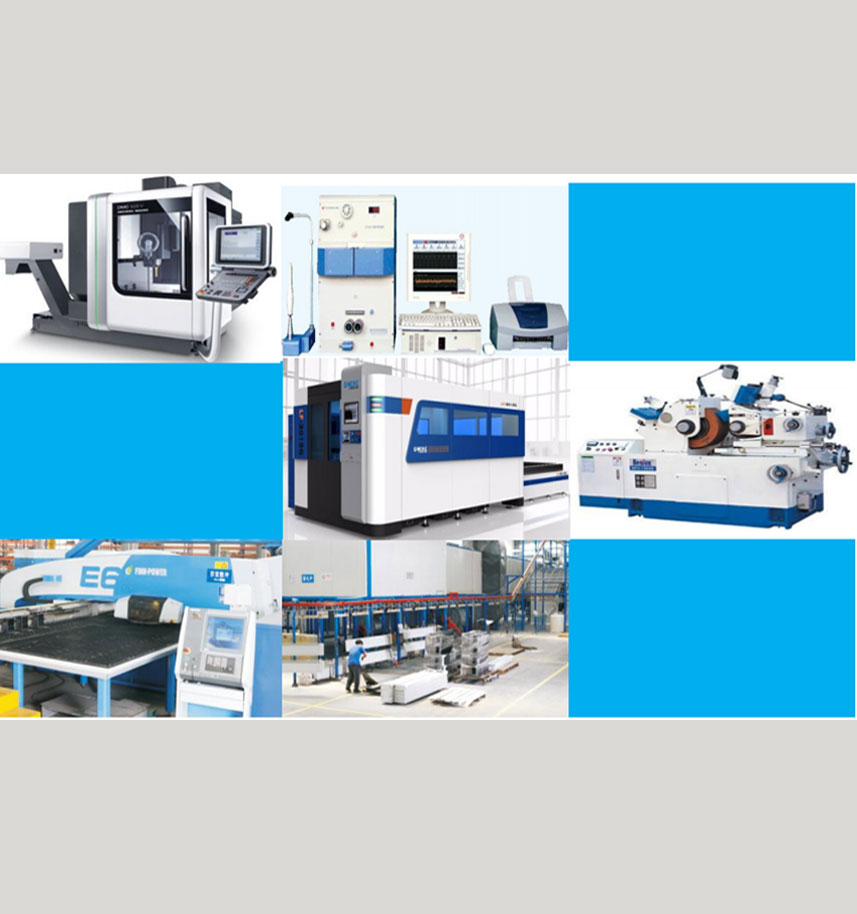

MANUFACTURING SYSTEM
◎International entire process manufacturing system for highprecision professional spindle
◎Imported mental automatic production line
◎Germany automatic spraying production line

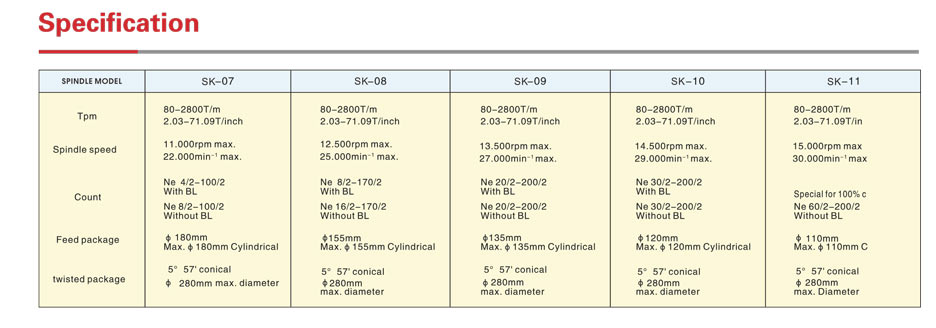

| Suitable yarn range | Ne3/2~160/2 cotton yarn、CVC、wool yarn、blended yarn,etc |
| No.of sections | ≤13，standard 10 sections |
| Twist(T/M) | 80~2500T/M(Stepless- adjusted) |
| Twist direction | S or Z Direction |
| Traverse length | 152mm (Stepless- adjusted) |
| Angle of wind | Setting direct(Stepless-adjusted) |
| Rated power(KW) | 22kw+1.3kw+2.5kw |
| Winding bobbin | Bobbin length 170mm |
|
（plate）□18.2mm □26mm □34mm □40mm □58.5mm □66.8mm □68mm |
|
| Supply bobbin size | Øφ37.5×φ43.5×170(230) |
| Spindle tensioner | Capsule |
| Start mode | Soft start |
| Form of operation | Double sides single layer Pneum atic yarn guide |
| Cradle elavating | Single spindle delayed pneumatic lifting |
| Take-up diameter(mm) | Max φ280 |
| Take-up speed(m/min) | Max 80(m/min) |
| Spindle driving | Direct motor drive,Stepless speed regulation of frequency conversion |
| Winding mode | Power-off synchronous electronic system |
